Product Profile

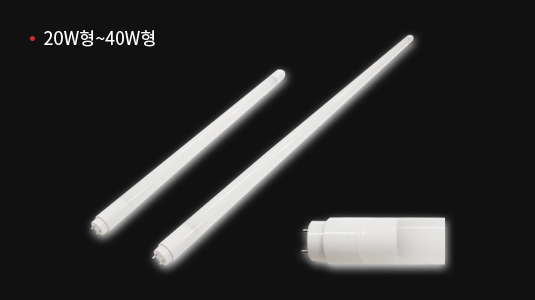

Tubular lamp

Tubular lamp

Product profileTubular lamp

ITEM SPEC
Replaceable
Incandescent light		 20W Type 40W Type 110W Type
Model T9DE–06–08 T9DE–12–15 T9DE–24–30
Input Voltage AC95～264V / 50Hz～60Hz
Power Consumption 8 W 15 W 30 W
Total Luminous Flux 1,200lm 2,200lm 4,350lm
Color Temperature 3,000K / 3,500K / 5,000K / 5,700K (Buyer’s Option)
Material Polycarbonate + Aluminum
Color Rendering Ra 85
Luminance Efficiency ≈ 145lm/W
Size Ø 28.5(T9) 580mm / 1,198mm / 2,368mm
Lifepan Over 50,000 Hr
Weight 145 g 285 g 678 g
Socket G13 G13 / R17D

Reusing the existing installed fluorescent light fixture
-Possible to use LED light with less investment.

  • Optimized heat radiation design applied. Removed radiator.
  • Shock-resistant and lightweight Polycarbonate materials are used throughout.
  • Lightweight and slimmer product makes installation easier Without separating the ballast, Using AC direct connection to wires.
  • Compared to external power type installation, the construction time and cost are reduced.
ITEM SPEC
Replaceable
Incandescent light		 20W Type 40W Type
Model T9DE-06-10 T9DE–12–20
Input Voltage AC95~264V / 50Hz~60Hz
Power Consumption 10 W 20 W
Total Luminous Flux 1,100lm 2,200lm
Color Temperature 5,000K / 5,700K
Material Polycarbonate + Aluminum
Color Rendering Ra 97
Luminance Efficiency 110 lm/W
Size Ø 28.5(T9) X 580mm / 1,198mm
Lifepan Over 50,000 Hr
Weight 145 g 360 g
Socket G13

What is color rendering index?

“Color rendering” is when the light source of artificial light affects the original color of the subject.

The light source of good color rendering does not change the color of the objects.

The color rendering index(Ra) is determined by the KS standard and the maximum value is 100(Sunlight).

If the Ra number is high, it expresses the natural objects color well.


Normal LED light

High color LED light

Usage Examples


  • For Art galleries, museums.
    Showing the color of art works faithfully.

  • For flower shops, fresh food shops.
    Showing the freshness and beauty.

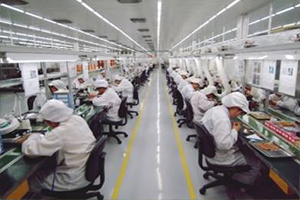

  • Production lines, assembly lines.
    Factories where detailed work is needed.

  • For restaurants.
    Making food look more delicious.

  • For fashion & cosmetic industries.
    Expressing the detail of colors.

  • For photo studios.
    Reproducing the color of the subjects.
