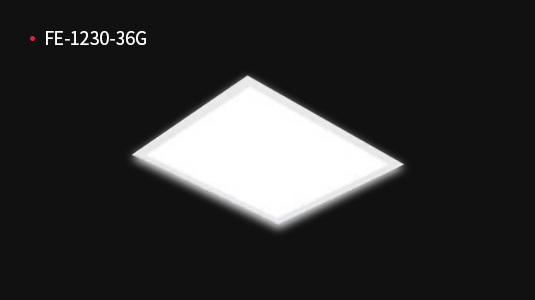

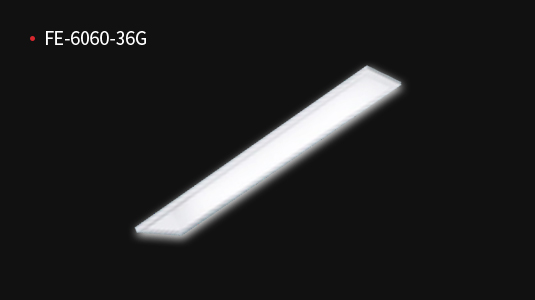

Product profilePanel light
New Concept of Future Lighting. Ultra-thin, simple and smart design!
AVIS’s edge type LED panel light uses indirect lighting so that it reduces eye fatigue due to the diffuse reflection of indoor lights unlike direct type LED lighting.
Ultra-thin thickness 12mm, lightweight 2.9kg, the panel light does not affect the structure, it also has a high utilization of space design and easy to install so it saves installation time and cost.
|40W Type×for 2 light|
|Input Voltage||AC100～242V / 50Hz～60Hz|
|Power Consumption||36 W|
|Total Luminous Flux||Over 4,680lm|
|Color Temperature||3,000K / 3,500K / 5,000K / 5,700K (Buyer’s Option)|
|Material||Polycarbonate + Aluminum|
|Color Rendering||Ra 85|

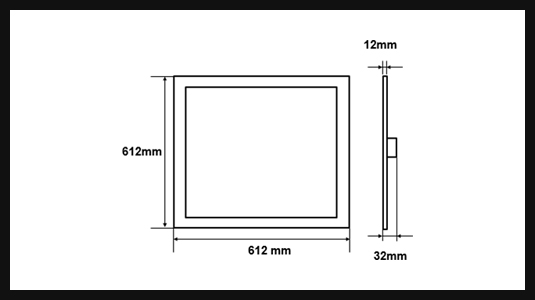

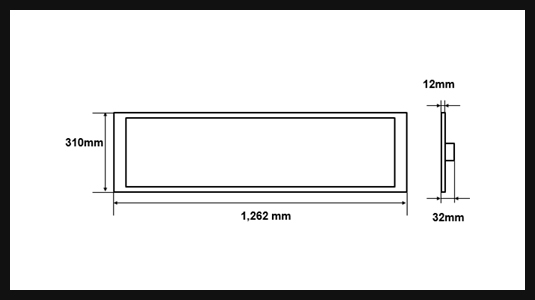

|Size||L612 X W612 X H32||L1,262 X W310 X H32|
|Lifepan||Over 50,000 Hr|

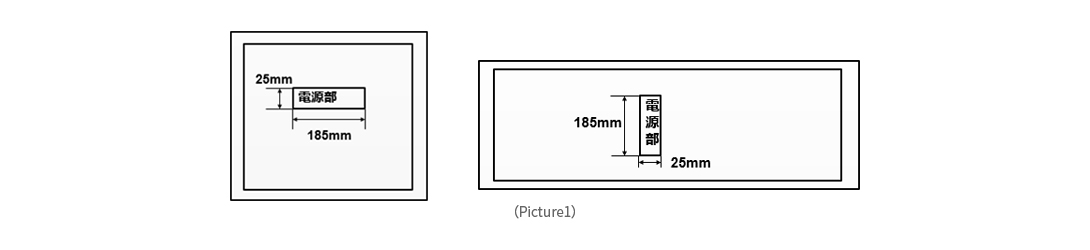

- Drill a suitable hole where you want to install the panel light at the ceiling.
※ To insert the power supply at the ceiling, set the location of it and drill a hole for it.
(The height of bury 20mm) <Picture 1>

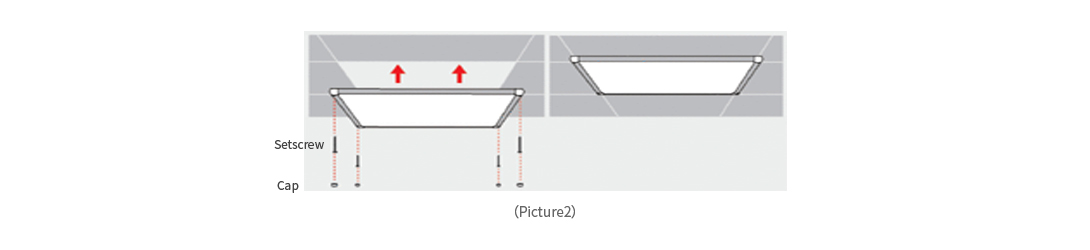

- Connect the AC Power line from the ceiling to the panel light.
- Use the 4ea of setscrews to fix to the ceiling, next cover to the head of setscrews
with the caps so that the screw head cannot be seen. <Picture 2>
